Stateline Phono 2 Phono-Vorverstärker von SteinMusic

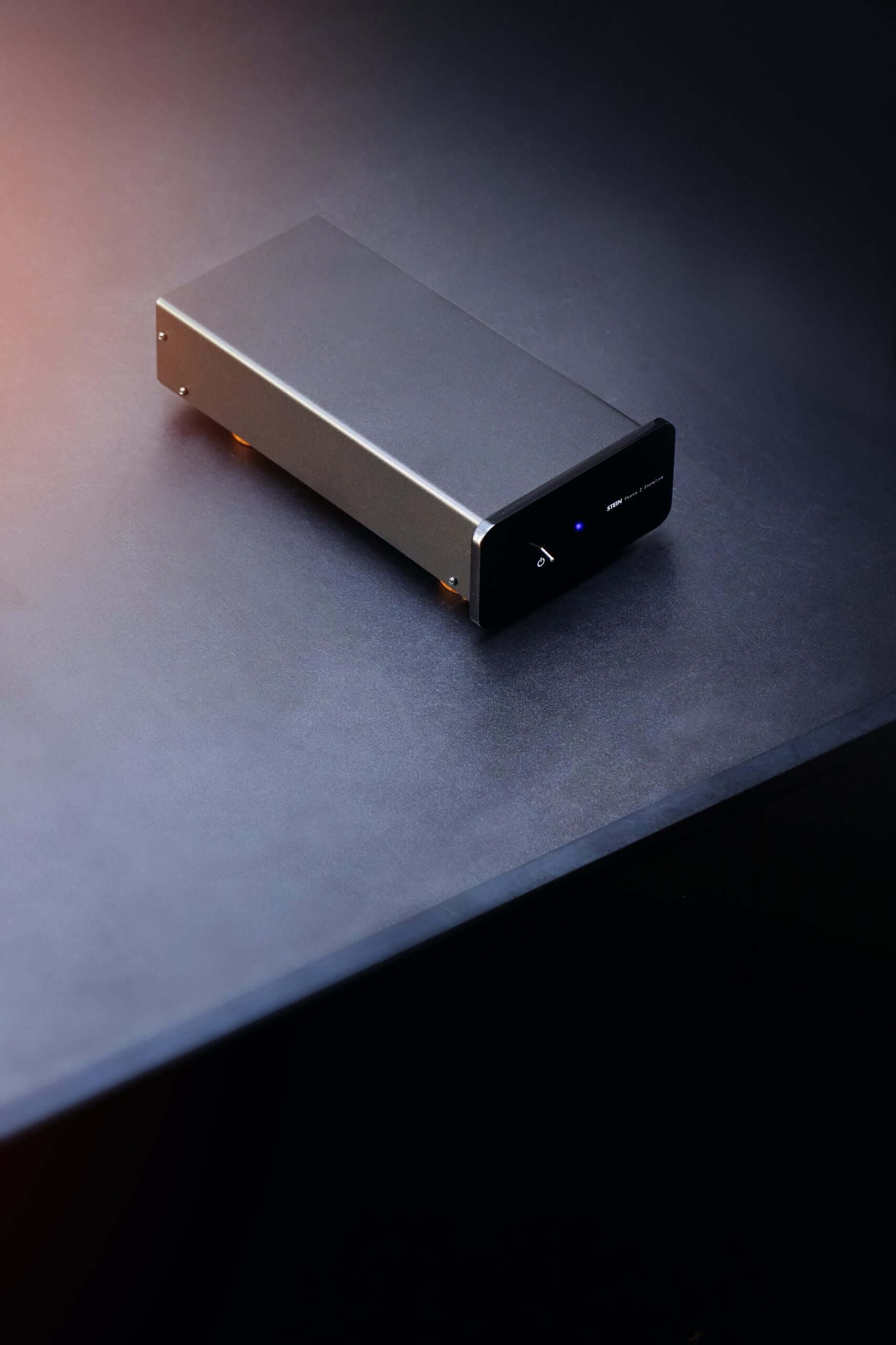

Stateline Phono 2 für MM- und MC-Tonabnehmer in der Frontansicht

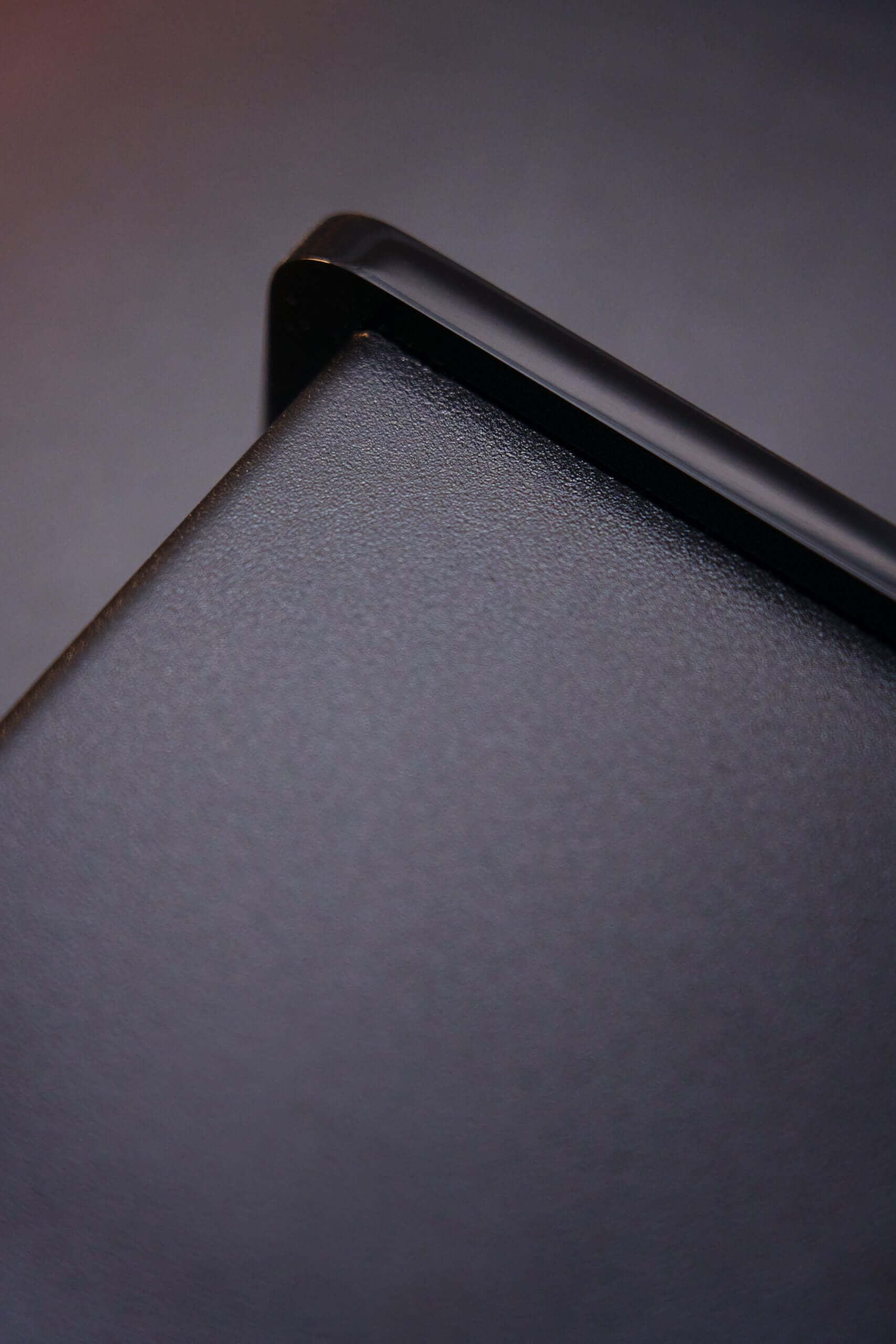

Kompaktes Gehäuse des Stateline Phono 2 mit schwarzer Front

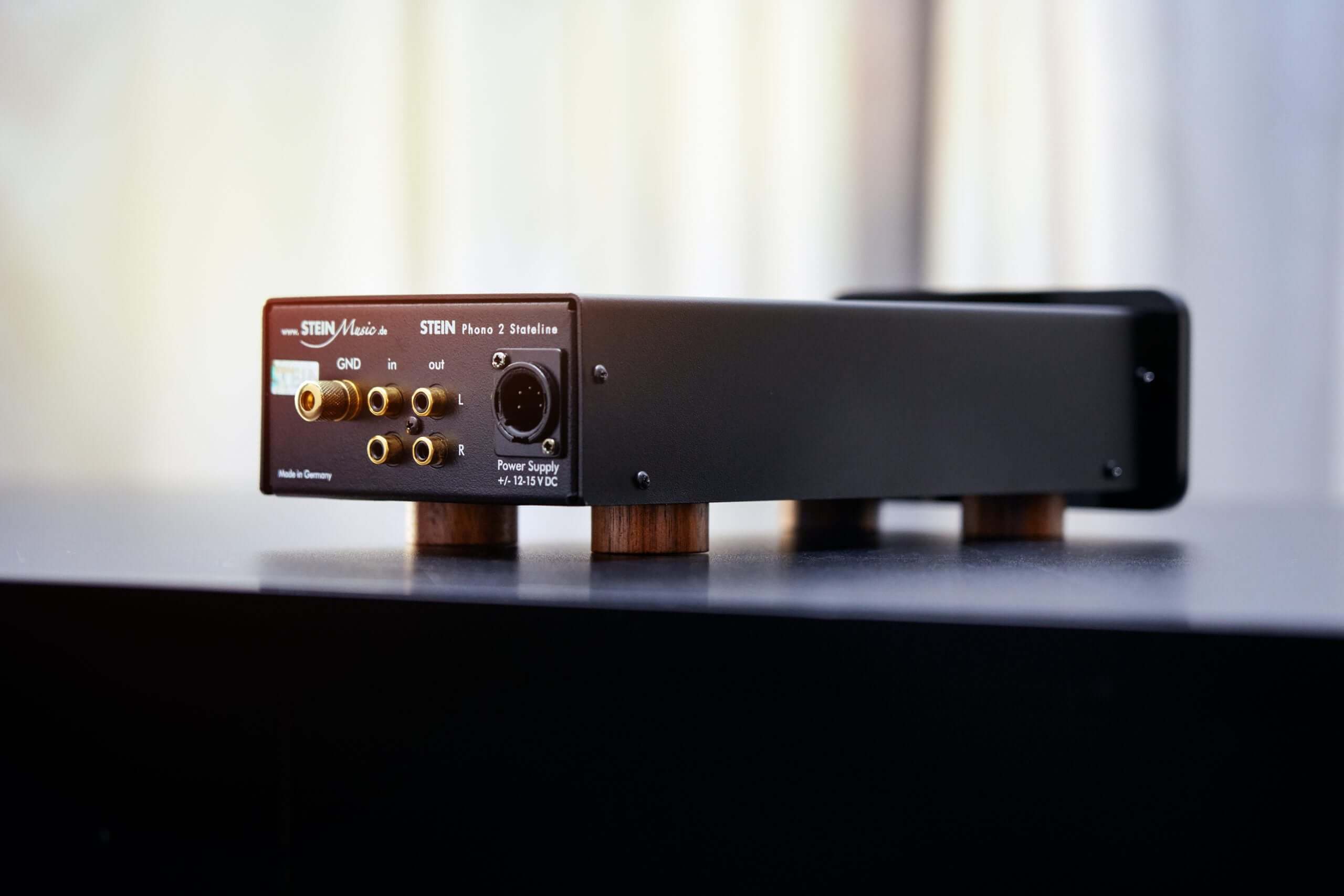

Anschlüsse des Stateline Phono 2 für MM- und MC-Tonabnehmer

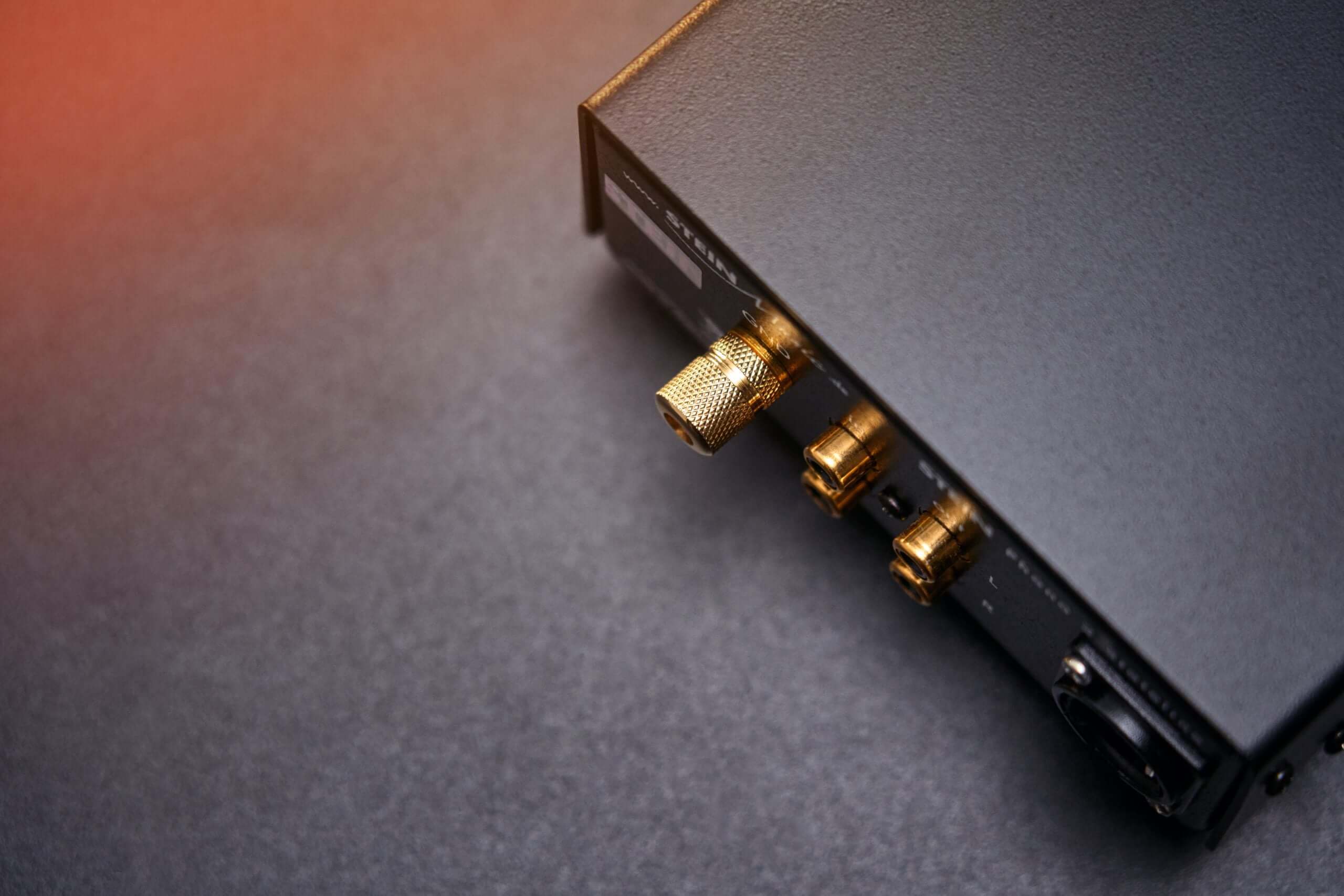

Vergoldete Anschlussbuchsen am Stateline Phono 2 im Detail

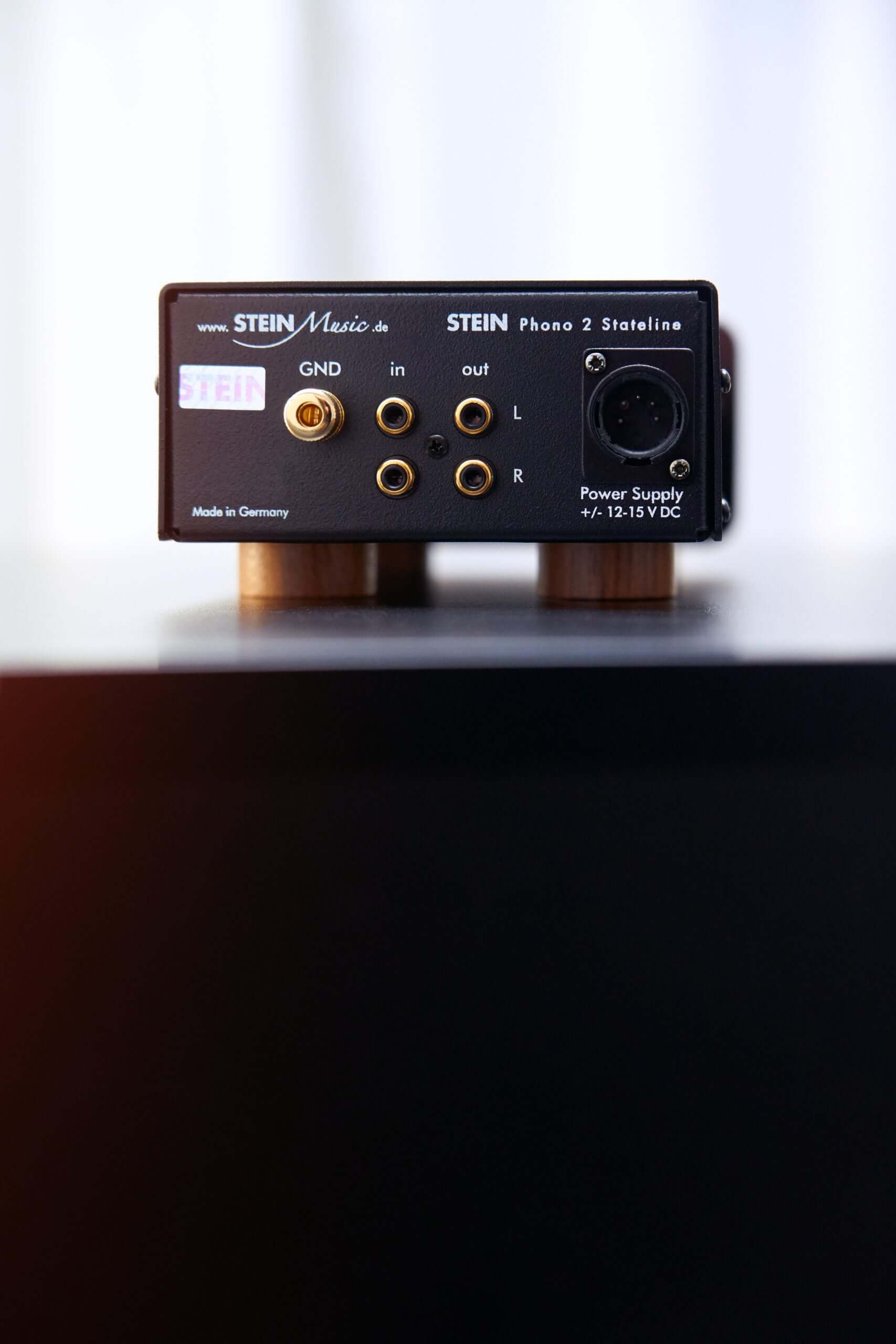

Rückseite des Stateline Phono 2 mit Ein- und Ausgängen

Vergoldete Anschlüsse am Phono-Vorverstärker Stateline Phono 2

SteinMusic

Stateline Phono 2 MM/MC Phono Preamp

Name: Stateline Phono 2 MM/MC Phono Preamp
Brand: SteinMusic
Price: 998.00 EUR
Availability: InStock

The Stateline Phono 2 is a phono preamp for MM and MC cartridges. It brings the delicate signal of your turntable to line level calmly and naturally, and can be matched to almost any cartridge. Designed and handmade in Germany.

€998

30-day return policy

Fast delivery

Individual consultation

Secure Payment

● In stock – with you in 1–3 working days

Specifications

Cartridges: MM and MC
Gain MM: 40 dB
Gain MC: 60 dB
Input capacitance MM: 0, 82, 150 or 232 pF
Input impedance MC: 25 Ω to 47 kΩ in 50 steps
Adjustment: DIP switches on the underside
Connections: RCA input, RCA output, ground terminal
Operation: class A
Made in: Germany

Technical details

Circuit: discrete design, individually matched FET input stage, MOSFET output stage in class A
RIAA equalization: passive for high, active for low frequencies, fully separate networks
Power supply: external raw power supply, no transformer in the chassis, internal discrete voltage regulator with LEDs as reference
Construction: double-sided PCB with SMD and through-hole components, short signal paths, no ceramic capacitors
Resonance control: PCB and all components coated with SteinMusic Maestro lacquer
Upgrade: can be upgraded to the Signature version with the Stateline Phono 2 Signature power supply

Stateline Phono 2 MM/MC Phono Preamp

€998

“The Stateline Phono 2 impresses with its warm tonal color and remarkable ability to reproduce spatial sound.”

U-Audio

MM AND MC

One unit for both cartridge types, with 40 dB gain for MM and 60 dB for MC.

FINELY ADJUSTABLE

Capacitance and impedance can be set so your cartridge finds its balance.

UPGRADEABLE

With the Signature power supply, your Phono 2 can later become the Signature version.

A phono preamp for every cartridge

Adjustable for MM and MC

A cartridge only sounds right when the preamp suits it. With the Stateline Phono 2 you choose one of four input capacitance settings for MM cartridges, and set the input impedance between 25 Ω and 47 kΩ in 50 steps for MC cartridges. This lets you match it to almost any cartridge, so voices and instruments stand clear and relaxed in the room.

Quiet that lets music emerge

Discrete design, class A, external power supply

A cartridge signal is very small, and any interference gets amplified with it. That is why there is no transformer in the chassis: the power supply sits outside. Inside, a discrete FET input stage and a MOSFET output stage work in class A. The PCB and all components are coated with our Maestro lacquer, which damps mechanical resonances. What remains is a quiet background against which fine details become audible.

The Stateline Phono 2 is a phono preamp for turntables with MM or MC cartridges. It sits between your turntable and amplifier, raises the very small cartridge signal to line level and applies RIAA equalization. Only then does a record sound the way it was recorded.

When a dedicated phono preamp makes sense

Many amplifiers no longer have a phono input, others only a simple one for MM cartridges. If you use an MC cartridge or want to give your turntable more room, connect the Stateline Phono 2 to any line input. Its own external power supply keeps interference from the amplifier away.

Matched to your cartridge

For MM cartridges you can choose between four input capacitance settings, for MC cartridges the input impedance can be set in 50 steps. You will find the values for your cartridge in the manufacturer's data sheet. If you are unsure, we are happy to help you with the setup.

Grows with your system

The Stateline Phono 2 is the entry point to our phono preamps. With the Stateline Phono 2 Signature power supply you can later upgrade it to the Signature version without replacing the unit. The Signature version was reviewed by Lite Magazin (German).

Pairs well with

A phono preamp can only reproduce what the cartridge picks up. The Achat 1 alignment protractor helps you align your cartridge precisely, and the Perfect Interface platter mat calms the record itself.

Frequently asked questions about the Stateline Phono 2

Will the Stateline Phono 2 work with my cartridge?

Very likely. It is designed for MM and MC cartridges. For MM you choose between 0, 82, 150 and 232 pF, for MC you set the impedance between 25 Ω and 47 kΩ in 50 steps. If you are unsure which setting fits, we are happy to advise you.

What is the difference to the Signature version?

The Signature version additionally works with the Stateline Phono 2 Signature power supply. It powers the preamp through a circuit with three transformers, two of them as isolation transformers. You can upgrade your Phono 2 to the Signature version with this power supply at any time.

My amplifier has a phono input. Do I still need a phono preamp?

Not necessarily. Built-in phono inputs are often a simple solution for MM cartridges. The Stateline Phono 2 adds its own power supply, a discrete design and settings for MC cartridges. Whether the step is worth it is best heard on your own system. You have a 30-day return period for that.

Where is the Stateline Phono 2 made?

SteinMusic has been designing and building audio products in Mülheim an der Ruhr, Germany, for over 40 years. The Stateline Phono 2 is also handmade by us in Germany.
